C. B. Gitty

27mm Piezos Elements with Leads - Choose Pack Size

SKU:
50-004-03
UPC:
610074050940
  • 27mm Piezos Elements with Leads - Choose Pack Size
  • 27mm Piezos Elements with Leads - Choose Pack Size
  • 27mm Piezos Elements with Leads - Choose Pack Size
$4.79

Description

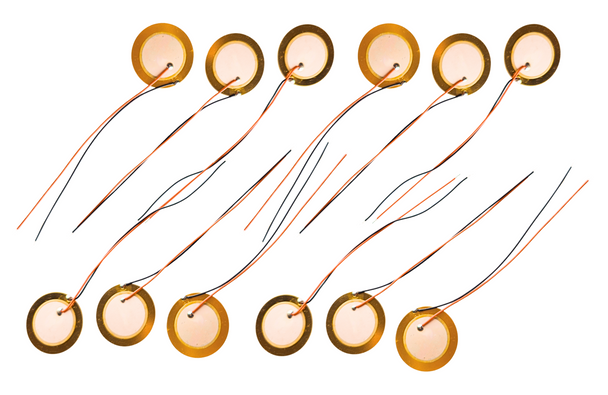

These 27mm piezo elements are pre-wired with leads to save you having to solder wires on yourself. At just over one inch in diameter, these are a great size for installing in cigar box guitars, foot stompers and other home-made instruments. They can also be used for custom pickup arrangements in more traditional stringed and percussion instruments. Some builders claim that the larger-diameter piezos respond better to bass tones, others claim that the size of the piezo doesn't really matter. Try several sizes and see for yourself!

An electric pick-up is a sure-fire way to take your cigar box guitar or other build to the NEXT LEVEL, and many builders report that their instruments are much more attractive to potential buyers if they include a pickup. So here is your chance to take the plunge without dropping a huge wad of cash!

Technical Specs:
Plate Diameter: 27mm (1.06 inches)
Element Diameter: 20mm (.787 inches)
Plate Thickness: .54mm (.021 inches)
Lead Length~100mm (3.95 inches)

Plate Material: Brass
Resonant Frequency (kHz): 4.6 +/- 0.5kHz
Resonant Impedence (ohm): 300 max.
Capacitance (nF): 20.0 +/- 30% [1kHz]
